Kawasaki Ninja H2R Motorcycle – Supercharged 998cc Inline-Four Engine

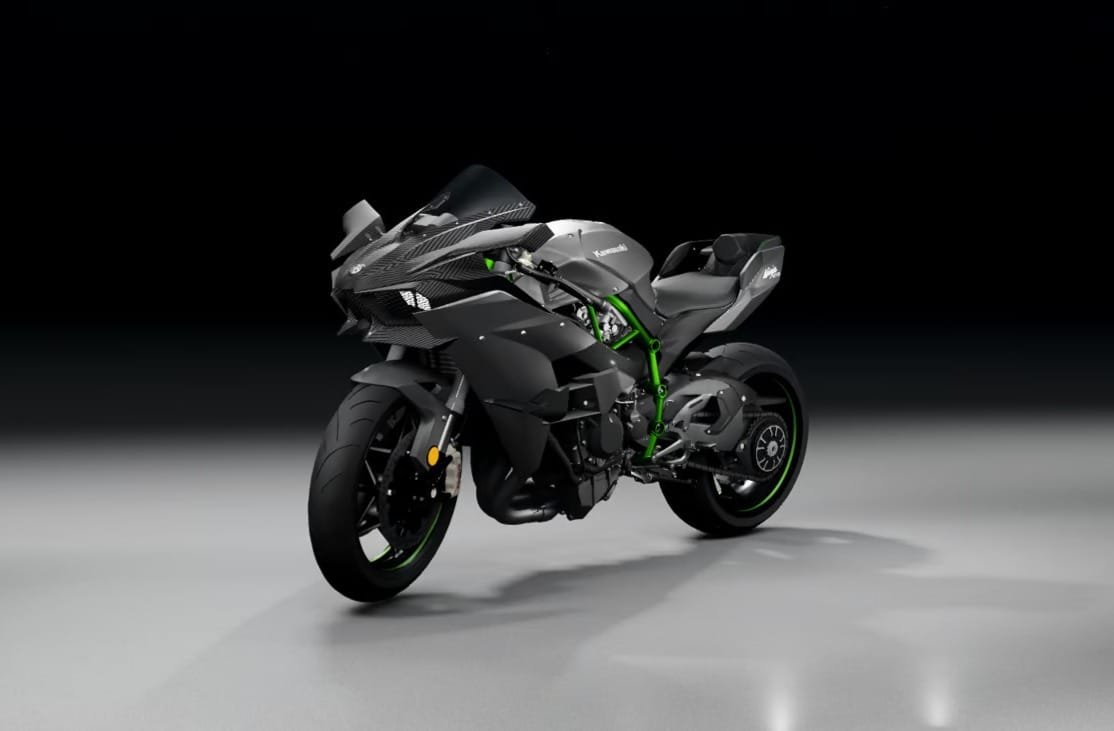

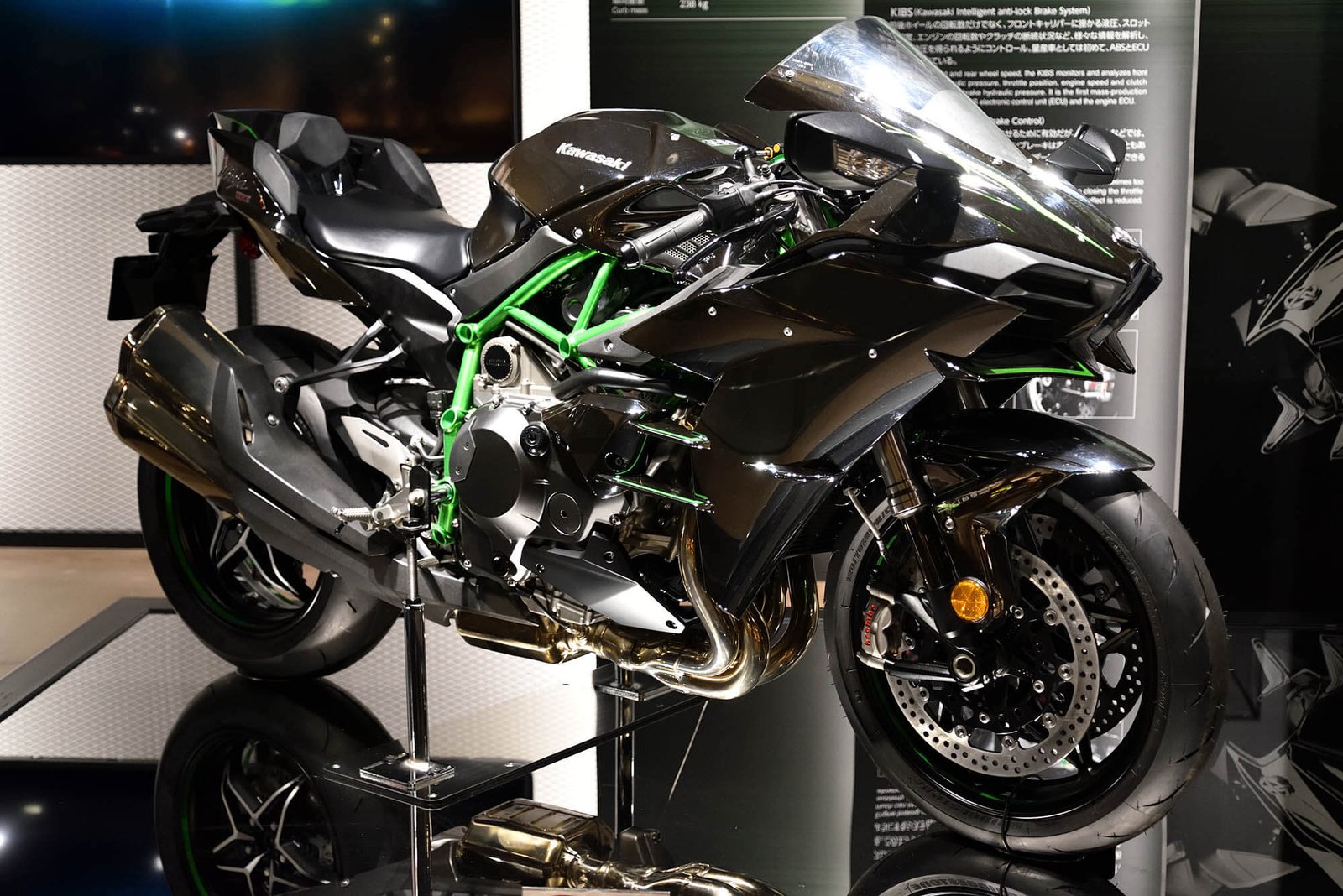

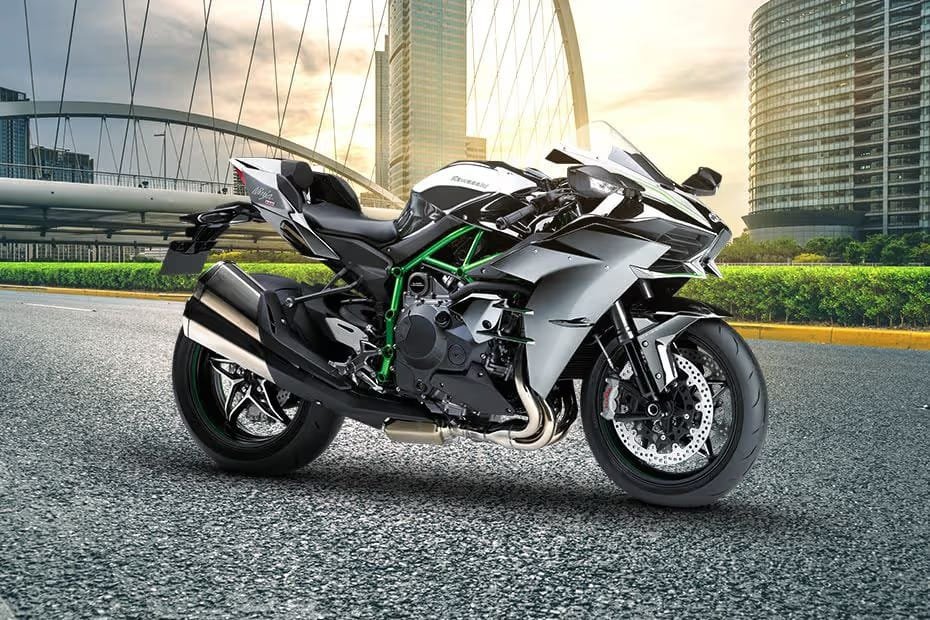

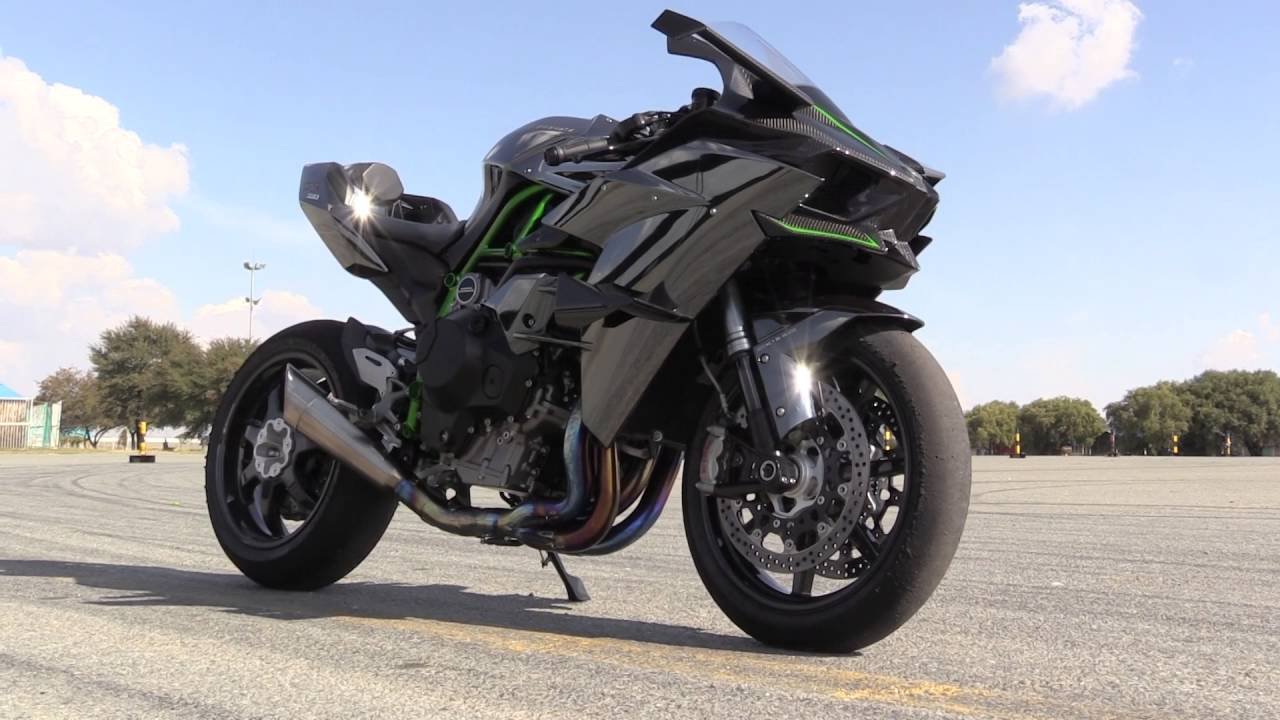

Kawasaki Ninja H2R is a track-exclusive hypersport motorcycle engineered for unparalleled performance. Featuring a supercharged 998cc inline-four engine, it delivers extraordinary power and acceleration, making it one of the most formidable motorcycles designed for closed-course riding. Its advanced aerodynamics and cutting-edge technology embody Kawasaki’s commitment to pushing the boundaries of motorcycle engineering.

Specifications
Engine and Performance

Engine Type: Liquid-cooled, 4-stroke, inline-four, DOHC, 16-valve
Displacement: 998 cc
Supercharger: Centrifugal, scroll-type
Max Power: 310 PS (228 kW) @ 14,000 rpm
Max Torque: 165 Nm (121.5 lb-ft) @ 12,500 rpm
Compression Ratio: 8.3:1
Fuel System: DFI® with 50mm throttle bodies (4) with dual injection
Transmission: 6-speed, dog-ring, return shift
Clutch: Wet multi-disc, manual
Final Drive: Chain

Dimensions and Weight

Overall Length: 2,070 mm (81.5 inches)
Overall Width: 850 mm (33.5 inches)
Overall Height: 1,160 mm (45.7 inches)
Wheelbase: 1,450 mm (57.1 inches)
Seat Height: 830 mm (32.7 inches)
Curb Weight: 216 kg (476 lbs)
Fuel Tank Capacity: 17 liters (4.5 gallons)

Chassis and Suspension

Frame Type: Trellis, high-tensile steel with swingarm mounting plate
Front Suspension: 43 mm inverted fork with rebound and compression damping, spring preload adjustability, and top-out springs
Rear Suspension: New Uni-Trak® Öhlins TTX36 gas-charged shock with piggyback reservoir, compression and rebound damping, and preload adjustability

Brakes and Tyres

Front Brakes: Dual semi-floating 330 mm discs with dual radial-mount, Brembo Stylema 4-piston calipers
Rear Brake: Single 250 mm disc with opposed 2-piston caliper
Front Tyre: 120/600 R1
